CRISTAL-FLO™ II TOP-MOUNT FILTERS (Sta-Rite)

Shop Home » Sta-Rite 2010 » Filters » Filters
Audio Accounts Products Images

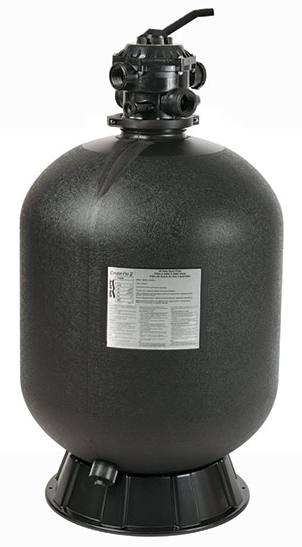

CRISTAL-FLO™ II TOP-MOUNT FILTERS
Click here to view full image.
This product is part of
Sta-Rite 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
Press, twist, and relax.


You won't burn many calories maintaining Cristal-Flo™ II Top-Mount Filters. A little two-way wrist action on the control valve puts the Cristal-Flo II to work cleaning itself. And, this is one workout routine you won't have to do very often. Through innovative engineering, the filter's dirt-handling capacity is maximized, which extends the time between cleanings (backwashing).
  • Large Drain Plug – Large drain plug is easy to get at for removing and installing by hand or with tools if required
  • Sleek Looks – Contemporary style with a textured black finish that provides superior performance in all weather conditions
  • 6-Position Valve – Allows you to perform all necessary water movement functions. A transparent sight-glass adapter is included
  • Quality Construction – Durable one-piece extra-thick molded polyethylene tank
  • Safe – Internal air relief hole allows air to automatically escape, preventing high pressure buildup
Optimal Performance at this GPM: Operating at this GPM will provide the longest filter cycles combined with the best and greatest dirt-loading capacity.


Flow Rate at 15 - 20 GPM (per sq ft): Based on NSF recommended flow rate for commercial at 15 -20 GPM per square foot.


Sand Required (Lbs): Use only #20 white quartz silica sand, size range 0.4 - 0.55 mm; 12" to 15" sand bed depth required.


Operating Limits – maximum continual operating pressure of 50 PSI. Maximum water temperature (internal filter) 95°F (35°C).


DO NOT USE FOR SPA APPLICATIONS!


“-1” MODELS – SHIPPED WITH VALVE IN FILTER CARTON.


“-2” MODELS – VALVE IS SHIPPED IN A SEPARATE CARTON. VALVE #14971-TM-22-L (WEIGHT = 7 LBS.)
Product Information
Name:CRISTAL-FLO™ II TOP-MOUNT FILTERS
Manufacturer:Sta-Rite
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(251) 343-6061
Fax:(251) 343-6069
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:CRISTAL-FLO™ II TOP-MOUNT FILTERS
Manufacturer:Sta-Rite
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

Qty Description   Our Price (USD)
Part#: 145359
EFFECTIVE FILTRATION AREA (SQ FT): 1.19, MAX PRESSURE (PSI): 30, FLOW RATE (GPM): 35, TURNOVER CAPACITY (IN GALLONS) - 8 HOURS: 16,800, TURNOVER CAPACITY (IN GALLONS) - 10 HOURS: 21,000, TURNOVER CAPACITY (IN GALLONS) - 12 HOURS: 25,200, ALL SAND REQUIRED (LBS): 100 - Cristal-Flo II Top-Mount Sand Filter		 Request a Quote

Part#: 145360
EFFECTIVE FILTRATION AREA (SQ FT): 1.92, MAX PRESSURE (PSI): 35, FLOW RATE (GPM): 40, TURNOVER CAPACITY (IN GALLONS) - 8 HOURS: 19,200, TURNOVER CAPACITY (IN GALLONS) - 10 HOURS: 24,000, TURNOVER CAPACITY (IN GALLONS) - 12 HOURS: 28,800, ALL SAND REQUIRED (LBS): 150 - Cristal-Flo II Top-Mount Sand Filter		 Request a Quote

Part#: 145361
EFFECTIVE FILTRATION AREA (SQ FT): 2.64, MAX PRESSURE (PSI): 40, FLOW RATE (GPM): 60, TURNOVER CAPACITY (IN GALLONS) - 8 HOURS: 28,800, TURNOVER CAPACITY (IN GALLONS) - 10 HOURS: 36,000, TURNOVER CAPACITY (IN GALLONS) - 12 HOURS: 43,200, ALL SAND REQUIRED (LBS): 250 - Cristal-Flo II Top-Mount Sand Filter		 Request a Quote

Part#: 145362
EFFECTIVE FILTRATION AREA (SQ FT): 3.15, MAX PRESSURE (PSI): 50, FLOW RATE (GPM): 70, TURNOVER CAPACITY (IN GALLONS) - 8 HOURS: 33,600, TURNOVER CAPACITY (IN GALLONS) - 10 HOURS: 42,000, TURNOVER CAPACITY (IN GALLONS) - 12 HOURS: 50,400, ALL SAND REQUIRED (LBS): 300 - Cristal-Flo II Top-Mount Sand Filter		 Request a Quote

Part#: 145363
EFFECTIVE FILTRATION AREA (SQ FT): 3.69, MAX PRESSURE (PSI): 50, FLOW RATE (GPM): 75, TURNOVER CAPACITY (IN GALLONS) - 8 HOURS: 36,000, TURNOVER CAPACITY (IN GALLONS) - 10 HOURS: 45,000, TURNOVER CAPACITY (IN GALLONS) - 12 HOURS: 54,000, ALL SAND REQUIRED (LBS): 350 - Cristal-Flo II Top-Mount Sand Filter		 Request a Quote
